Principales características

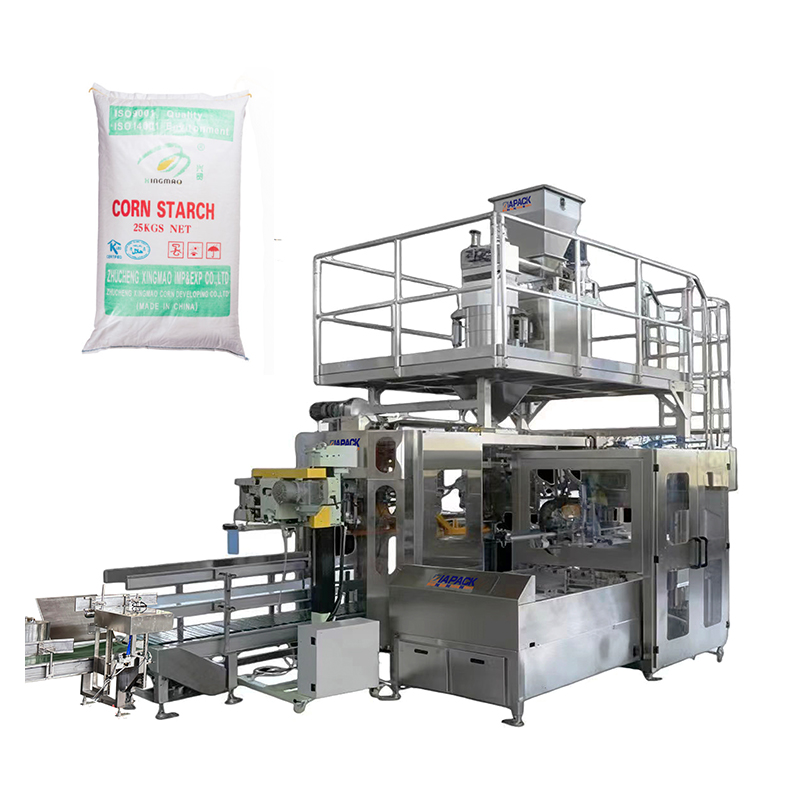

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
Dos microinterruptores se instalan en la posición de apertura del dispositivo de sujeción de bolsas. Estos microinterruptores detectan si la boca de la bolsa está completamente cerrada y si la abertura está completamente abierta. Esto evita errores de cálculo y derrames de material al suelo, lo que mejora la eficiencia de la máquina y el entorno de trabajo en la obra.
La válvula solenoide y otros componentes neumáticos tienen un diseño sellado, instalación no expuesta, se pueden usar en ambientes con polvo, para garantizar que el equipo tenga una larga vida útil.
Parámetros técnicos
| Modelo | ZLH50D |
| Modo de alimentación | Double horizontal screw feeding with weighing bucket |
| Peso del embalaje | 25kg |
| Precisión de embalaje | ≤±0.5-1% |
| Velocidad de embalaje | 2-4 bags/min |
| Fuente de alimentación | 3P AC208-415V 50/60Hz |
| Poder total | 5kw |
| Aire comprimido | 6 kg/cm2 0,3 cm3/min |
